Electrostatic
System
Edge pinners

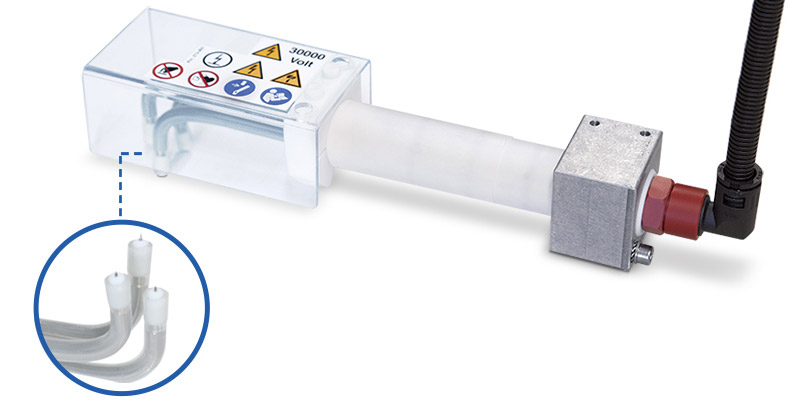

ECF-R3 SERIES: Edge-fixing charge electrodes
A high-voltage direct current single polarity electrostatic system for temporarily adhering plastic or paper materials to a desired surface, with no physical contact between the emitter and the material.
Electrostatic chargers are used to improve the quality of the final product and reduce production waste, times, and costs during certain specific industrial processes.
Each system consists of one or two charging electrodes and a dedicated GEE-R2 generator.
Cason electrostatic devices are robust, require minimal maintenance, and are easy to install.
“Edge pinners”:
• The use of ECF-R3 charging electrodes is particularly suitable on the The use of ECF-R3 charging electrodes is particularly suitable on the; however, this electrode’s “concentrated” effect is also useful wherever the need arises to have a strong temporary compacting effect on a small area or object.
• The ECF-R3 units have 3 charging tips with the following features:
– Rotatable, to optimise their orientation towards the material;
– Removable, to allow them to be replaced in the case of wear);
– Individually resistive-coupled, to limit their current (thus preventing strong arcs from being triggered and reducing their contact hazard) and, in the event that one tip should short circuit to ground, to ensure that the remaining two tips remain operational.
Experience, know-how and product range:
• Our decades of experience and diverse product range allow us to help our customers choose the electrostatic devices most suitable for their specific applications, which is an extremely important factor in the electrostatic field.
